Portable or tabletop laminar flow hood is a type of laboratory equipment that provides a sterile working environment by directing filtered air in a laminar flow over the work surface. This creates a barrier between the work area and the surrounding environment, preventing contamination from entering the workspace. These laminar flow hoods are commonly used in microbiology, cell culture, and other applications that require a sterile environment to work with delicate samples.
Tabletop laminar flow hoods are designed to be compact and portable, making them ideal for small laboratory spaces or for use in the field. They are also easy to clean and sanitize, making them a popular choice for many industries where cleanliness and hygiene are critical.
According to the direction of HEPA filtered airflow, portable laminar flow hood has two types, one is vertical laminar flow, another one is horizontal laminar flow. Portable laminar flow hood is widely applied to the fields required of protection of sample or products
Features:
- Vertical laminar air flow, open work area, easy operation
- Compact structure, small size to fit for normal worktop
- Varied air volume (VAV) blower and voltage regulation via feather-touch control panel to enable air velocity working at an ideal state within work area
- The work surface is made of SUS 304, corrosion-resistance and easy cleaning
- Universal wheels can be equipped on request.
Categories: Clean Bench, Laminar Flow Equipment
Tags: LAF, laminar flow, portable laminar flow, vertical laminar flow hood
Description

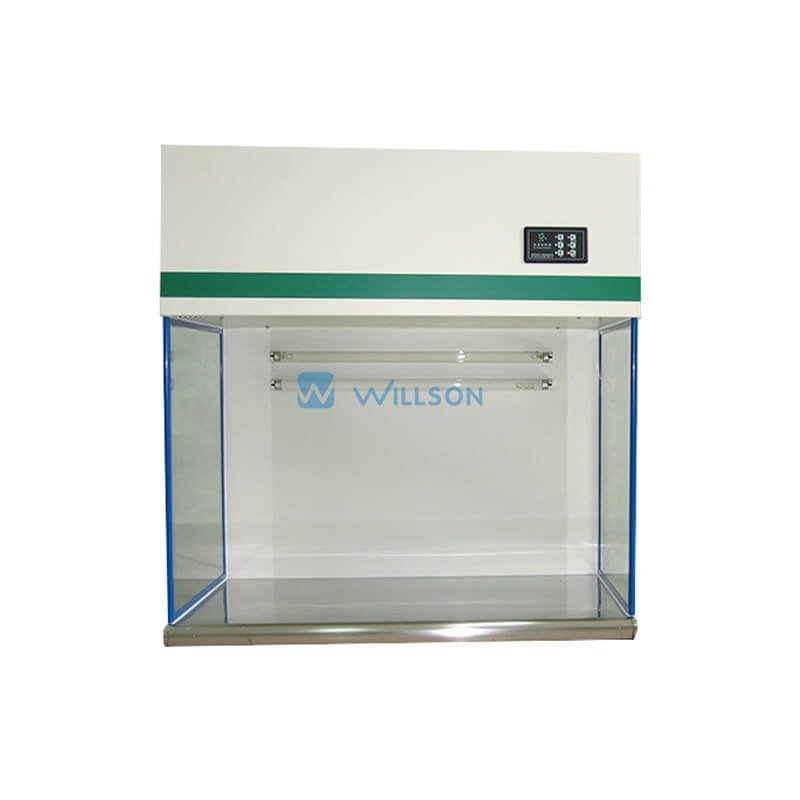

PORTABLE VERTICAL
LAMINAL FLOW HOOD
| Model | PVLH-650 | PVLH-850 | PVLH-650U | PVLH-850U |
|---|---|---|---|---|
| Cleanliness Class | ISO-5 (Class 100, Fed 209E) | |||
| Number of Colony | Not applicable | ≤0.5 CFM/Dish * 1 H ( Ф 90mm Culture Dish) | ||
| Average Air Velocity | ≥0.3 m/second(adjustable) | |||
| Vibration/Half Peak Value | ≤4 μm (X, Y, Z direction) | |||
| Power Supply | AC, 1-phase, 220 V ± 10%, 50 Hz | |||
| Illuminance | ≥300 Lx | |||
| Noise | 62 dB(A) | |||
| Max. Power Consumption | 0.4 KW | |||
| Weight (KG) | ∽60 KG | ∽70 KG | ∽60 KG | ∽70 KG |

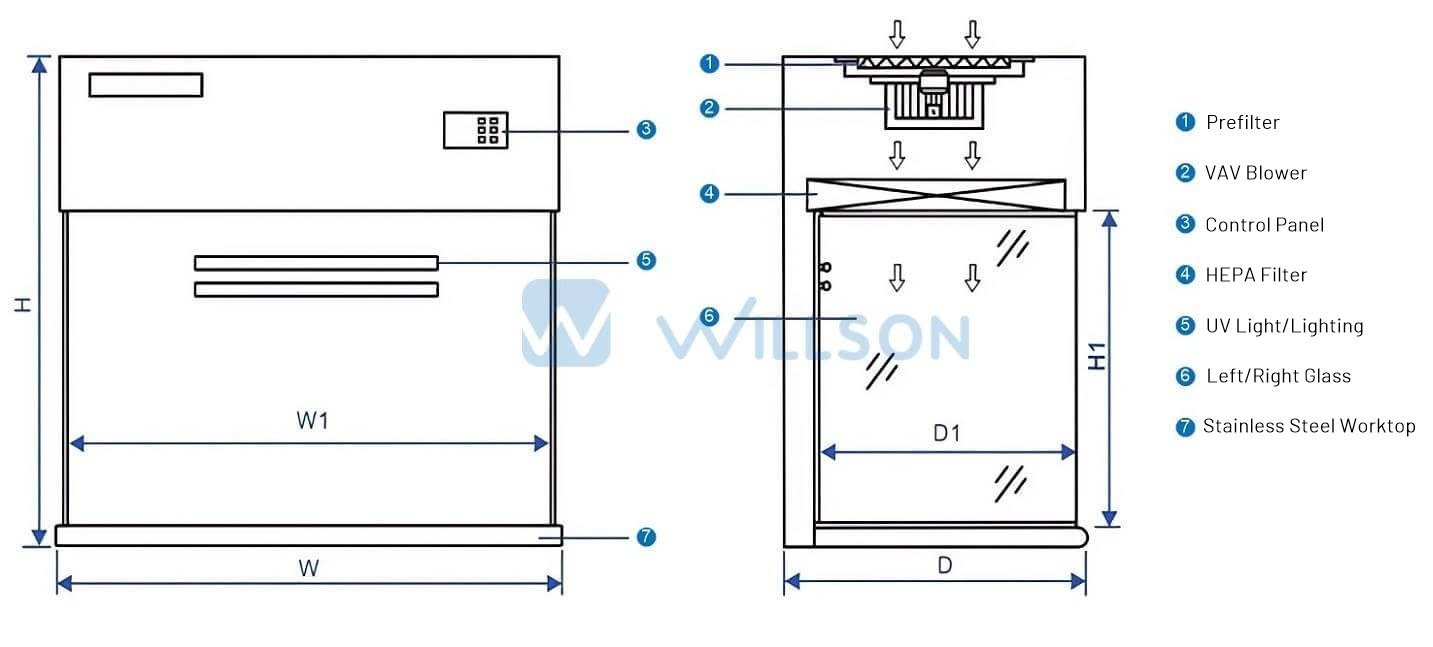

| External Size (mm) W*D*H |
650*600*900 | 850*600*900 | 650*600*900 | 850*600*900 |
| Internal Size (mm) W1*D1*H1 |
620*500*520 | 820*500*520 | 620*500*520 | 820*500*520 |
| HEPA Filter Size&Quantity | 600*484*50*1 | 800*484*50*1 | 600*484*50*1 | 800*484*50*1 |
| Fluorescent Light/UV Light Size&Quantity | 15W*2 | 20W*2 | 15W*1/15W*1 | 20W*1/20W*1 |
| Operator Quantity | 1-person | 1-person | 1-person | 1-person |
| Model | PVLH-650 | PVLH-850 | PVLH-650U | PVLH-850U |
PRODUCT SHOW
Testing Before Leaving Factory
FAQ
What is the minimal order quantity for placing order?
A: For the portable laminar flow hood, the moq is ONE.
What’s the lead time for my order?
A:Â For the standard hoods, normally we have stock. They can be delivered within 2 daysÂ
What is the warranty period for the hood?
A: The warranty period we guarantee to our customer is 1 year after the hood leaving our factory
What should I know before placing order?
A: Pleas your attention should be attached to the following:
Local voltage: 1-phase 220V, 50 hz or 1-phase 110V, 60hz. You can let us know when you request a quote from us.
