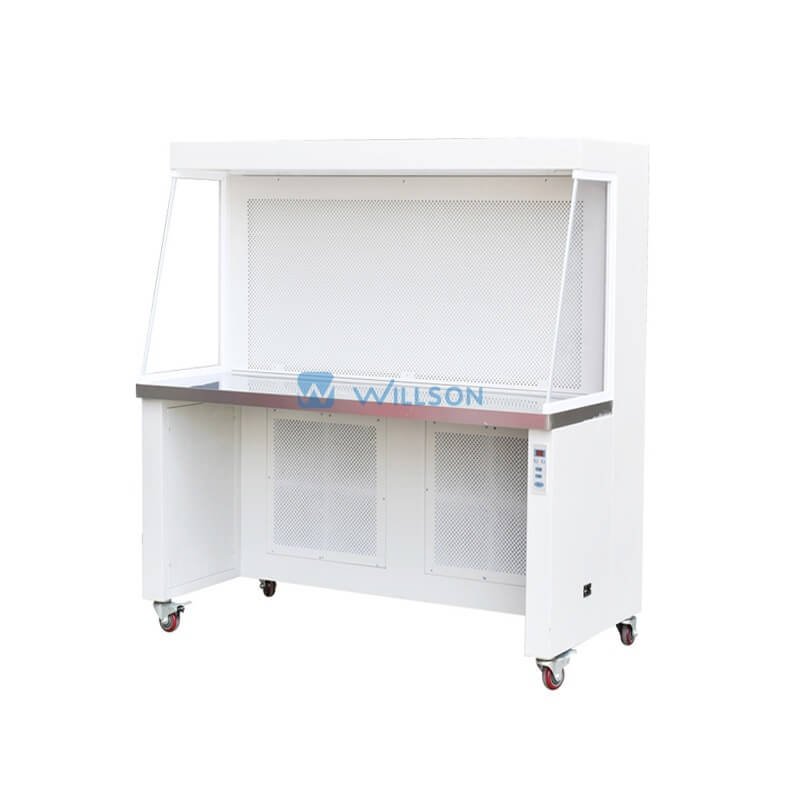

A horizontal laminar flow clean bench is a type of laboratory equipment that provides a sterile working environment by directing filtered air in a horizontal flow over the work surface. This creates a barrier between the work area and the surrounding environment, preventing contamination from entering the workspace. These clean benches are commonly used in microbiology, cell culture, and other applications that require a sterile environment to work with delicate samples.
According to the direction of filted airflow, clean bench has two types, one is horizontal laminar flow, another one is vertical laminar flow. Clean bench are widely applied to the fields required of protection of sample or products, such as fungus, microorganism, plant and animal cell culture, food safety ,clinical and hospital infusion preparation, cleanroom, semiconductor fabrication ,biological pharmaceutical, medical equipment fabrication and aerospace, etc.
Features:
- Horizontal laminar flow, open work area, easy operation
- Varied air volume (VAV) blower and voltage regulation via feather-touch control panel to enable air velocity working at an ideal state within work area
- The work surface is made of SUS 304, corrosion-resistance and easy cleaning
Categories: Clean Bench, Laminar Flow Equipment
Tags: Clean Bench, LAF, Laminar Airflow
Description
A horizontal laminar flow clean bench is a type of laboratory equipment that provides a sterile working environment by directing filtered air in a horizontal flow over the work surface. This creates a barrier between the work area and the surrounding environment, preventing contamination from entering the workspace. These clean benches are commonly used in microbiology, cell culture, and other applications that require a sterile environment to work with delicate samples.A horizontal laminar flow clean bench is a type of laboratory equipment that provides a sterile working environment by directing filtered air in a horizontal flow over the work surface. This creates a barrier between the work area and the surrounding environment, preventing contamination from entering the workspace. These clean benches are commonly used in microbiology, cell culture, and other applications that require a sterile environment to work with delicate samples.
Vertical LAMINAL FLOW
CLEAN BENCH
| Model | HLFCB-900 | HLFCB-1500 | VLFCB-1720 |
|---|---|---|---|
| Cleanliness Class | ISO-5 (Class 100) | ||
| Number of Colony | ≤0.5 CFM/Dish * 30 min ( Ф 90mm Culture Dish) | ||
| Average Air Velocity | 0.2–0.5 m/sec | ||
| Vibration/Half Peak Value | ≤4 μm (X, Y, Z directions) | ||
| Noise | ≤65 dB (A) | ||
| Illuminance | ≥300 Lx | ||
| Power Supply | AC, 220 V ± 10%, 50 Hz | ||
| Max. Power Consumption | 0.4 KW | 0.8 KW | 0.8 KW |
| Weight (KG) | ∽100 KG | ∽150 KG | ∽180 KG |
| External Size (mm) W*D*H |
900*700*1450 | 1500*700*1450 | 1720*800*1450 |
| Internal Size (mm) W1*D1*H1 |
850*500*600 | 1450*500*600 | 1680*600*600 |
| Operator Number | 1-person | 2-person | 2∽3-person |
| Model | HLFCB-900 | HLFCB-1500 | VLFCB-1720 |

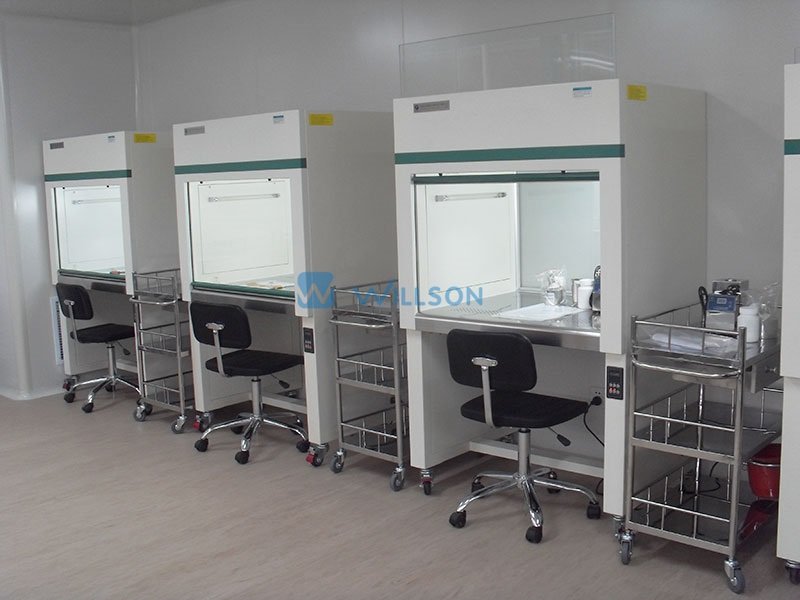

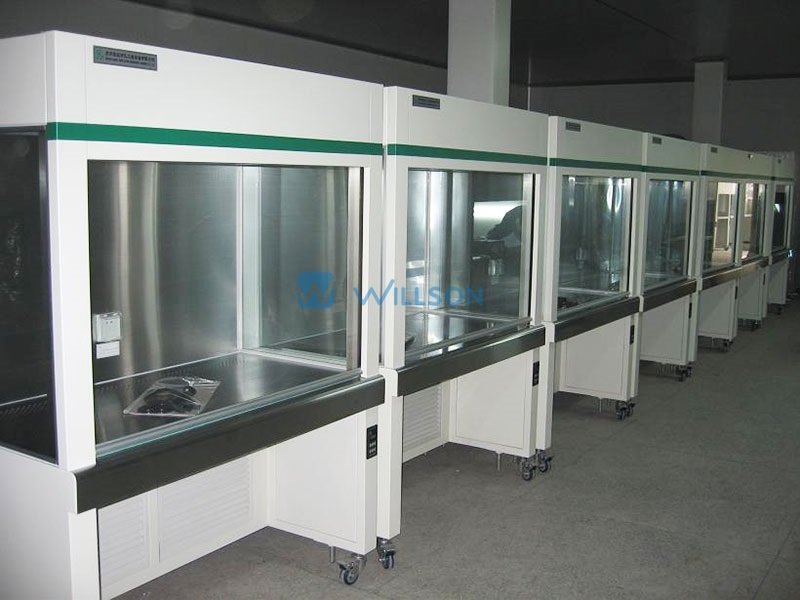

PROJECT CASES

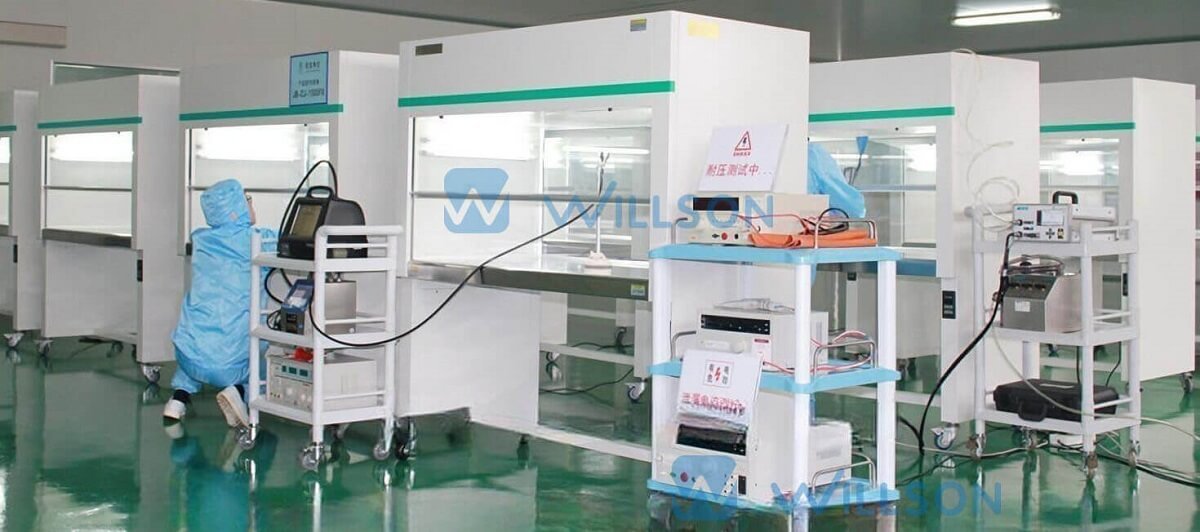

Product Testing Before Leaving Factory
FAQ
What is the minimal order quantity for placing order?
A: For the clean bench, the moq is ONE.
What’s the lead time for my order?
A: If your order is less then 5 booths, normally we have stock.
What is the warranty period for the bench?
A: The warranty period we guarantee to our customer is 1 year after the bench leaving our factory
What should I know before placing order?
A: Pleas your attention should be attached to the following:
Local voltage: 1-phase 220V, 50 hz or 1-phase 110V, 60hz. You can let us know when you request a quote from us.
Not find your preferred cleanrooms or laminar flow equipment?
No worry!!! We have some hard-wall cleanrooms and various laminar air flow equipment available. Please check them below, Thanks!
