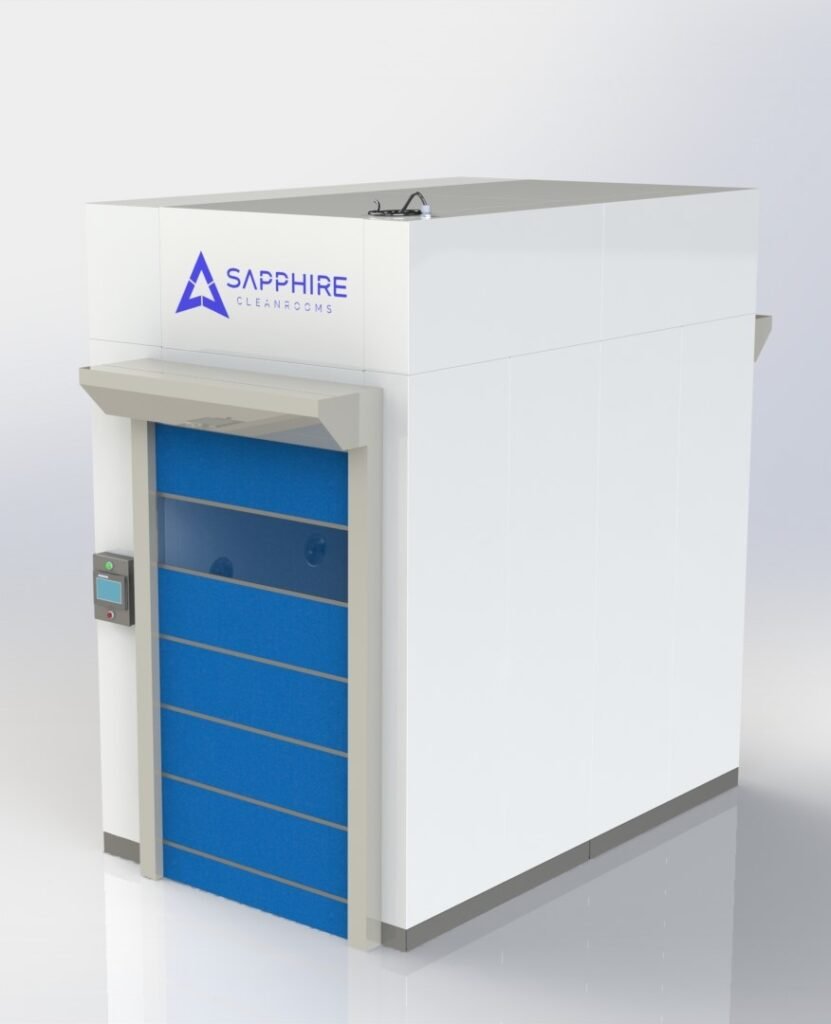

At Sapphire Cleanrooms, we specialize in building customized solutions for controlled environments. One of our most innovative developments is the Custom Air Shower a fully customized unit designed to meet the highest standards in cleanliness, safety, and operational efficiency.
What is an Air Shower?
An air shower is a transition chamber between non-clean and clean areas. It uses high-velocity air jets to remove particles from personnel or materials before entering controlled environments. This minimizes cross-contamination and extends the lifespan of HEPA filters in critical zones.
Key Specifications – Custom Air Shower
- External dimensions: 72” W x 139” D x 120”
- Internal dimensions: 45” W x 108” D x 82” H
- Air velocity: up to 8,000 ft/min through adjustable stainless steel nozzles
- Nozzles: 24 total, adjustable and strategically placed
- Doors: Roll-up high-speed doors with AC variable frequency control
- Control system: 7” color touch screen HMI (IP65)
- Filters:
- HEPA (2x 24”x24”, 95–99% efficiency @ 0.3 µm)
- MERV 4 washable pre-filters
- Construction: Cold-rolled steel with white powder-coated finish
- Power: 480 VAC, 3-phase, 5 HP motors
Smart Operation
This air shower includes a dual-door interlock system to prevent simultaneous opening, ensuring airtight conditions and avoiding contamination. Additional smart features:
- Automatic and manual modes via HMI
- Presence detection via infrared and retroreflective sensors
- Configurable cycle time (5 to 500 seconds)
- Status indicators: Available – In Use – Alert
- 4 emergency stop buttons for safetylify routine maintenance and part replacement.
Easy Maintenance
Its modular design provides easy access to motors, ducting, filters, and electrical components. Internal and upper panels are removable to simplify routine maintenance and part replacement.
Proven Results

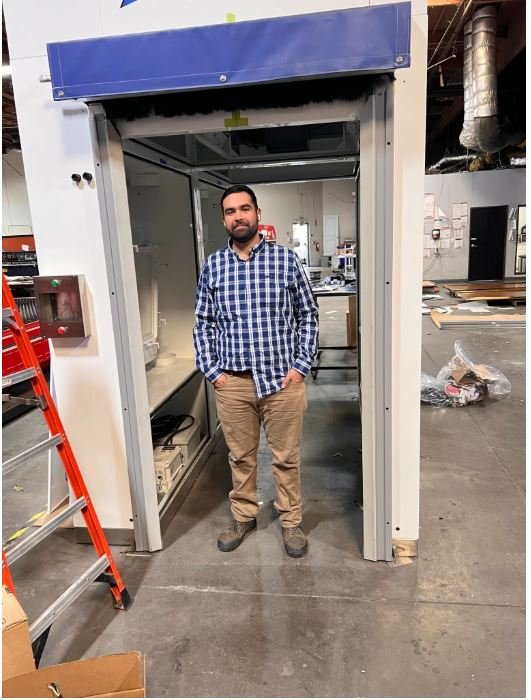

Following installation, the Custom Air Shower 1 has demonstrated:
- Effective removal of particles ≥0.5 µm
- Reliable performance in pharmaceutical and industrial cleanrooms
- Full client satisfaction thanks to its intuitive operation and robust construction
Need a Custom Air Shower?
We specialize in engineering fully customized air showers adapted to your space, workflow, and regulatory needs (ISO 14644, USP 800, BSL-2/3).
