Features:
- Recessed and flush door design to ensure no dust collection
- 100% stainless steel 304 design, easy cleaning and GMP-compliant
- Dedicated sanitary sealing strip to ensure air tightness
- Two doors are interlocked to prevent from cross-contamination UV light equipped to stop bacteria out of cleanroom
- Top air supply with H14 HEPA filter, reaching air cleanliness of ISO-5/Class 100
- Micro-computer control panel with LED screen make box more intelligent and easier to operate
- DOP test ports for testing air leakage of HEPA filter
Categories: Air Shower Series, Pass Box Series
Tags: dynamic pass box, Pass-through Box, Transfer Hatch
Description
Cleanroom pass box, also called pass-through box or transfer hatch, is a cleanroom equipment mounted between two rooms or areas, through which materials, small or big, can be transferred between the two rooms or areas, thus saving the trouble of entering and leaving cleanroom, minimizing the air turbulence of opening and closing the doors, more importantly, lowering down or prevent from the risk of cross-contamination between the two rooms or areas.
Willson has two types of pass boxes, static pass box and dynamic pass box. Static pass box is mainly mounted between two rooms which have same cleanliness class in classified areas. Dynamic pass box is mainly mounted between two rooms which have different cleanliness class and air pressure, e.g. between classified area and “Controlled and Non-Classified (CNC) area. For materials to be transferred into a cleanroom with high cleanliness class (ISO-4/5/6, the dynamic pass box is highly recommended).
Willson pass box series are all CE-certified, reaching export EU standard.

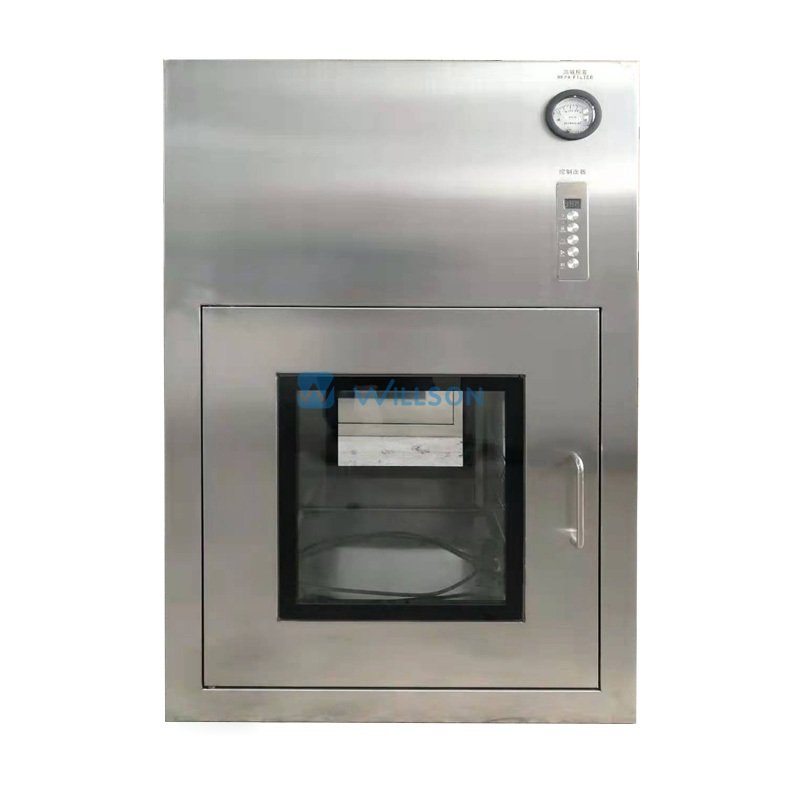

CLEANROOM DYNAMIC PASS BOX
| Model | WDPB-500 | WDPB-600 | WDPB-700 |
|---|---|---|---|
| Internal Size (W*D*H) |
500*500*500mm | 600*600*600mm | 700*700*700mm |
| External Size (W*D*H)mm |
720*580*970mm | 820*680*1070mm | 920*780*1170mm |
| Air Cleanliness Class | ISO-5 (Class-100) | ||
| Airflow Speed | 0.36–0.45 m/s | ||
| Air Showering Time | 0-99S (adjustable) | ||
| UV Sterlization Time | 0-99S (adjustable) | ||
| Material of Construction | 100% stainless steel 304 (by default), PCGI steel is optional | ||
| Power Supply | 1-phase, 220V, 50Hz | ||
| Interlocking | Electromagnetic Interlocking | ||
| UV Light | 15W | ||
| DOP Test Port | for PAO generator testing HEPA filter intergrity | ||
| Differential Pressure gauge | 0-500 Pascal | ||
| Air Filter | Pre-filter（Efficiency: G4 HEPA Filter (Efficiency: H14) |
||
| Model | WDPB-500 | WDPB-600 | WDPB-700 |

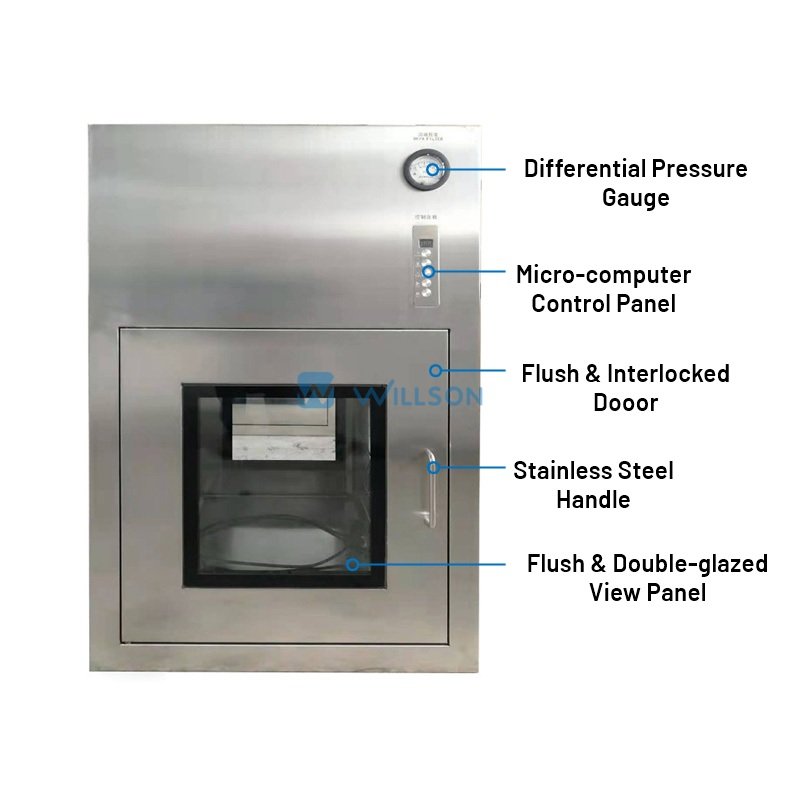

PRODUCT DETAILS
WHAT CAN BE CUSTOMIZED?
AIR SHOWER SIZE & TYPES
PASS BOX SIZE

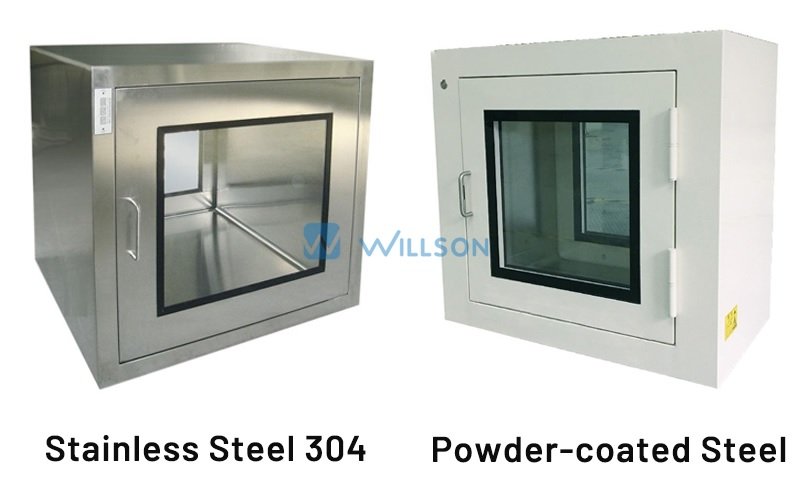

MOC OF PASS BOX

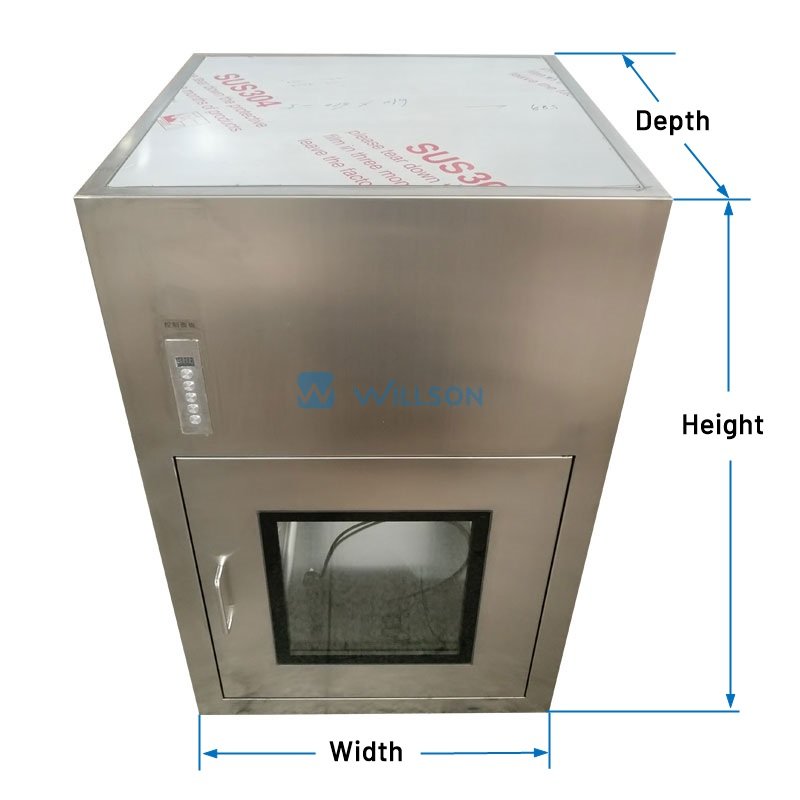

Either internal or external size(Width, Depth and Height) can be customized, subject to our technical feasility.
1: Stainless Steel 304 (by default)Â Â
2: Powder-coated Steel
Not find your preferred pass box?
No worry!!! We have various types of pass boxes available, standard size, customized size, dynamic or static or combined, 90 degree access, 2-door, 3-door, stacked type (two-tier), etc. We believe you can find your preferred pass box here!
FAQ
What is the minimal order quantity for placing order?
A: We can accept sample order, only one is OK.
What’s the lead time for my order?
A: If your order is less then 15 pass boxes, the lead time is within 15 days after receiving advance payment.
In addition to the dynamic pass box, what other pass box do you have?
A: In additon to dynamic pass box, we have static pass box
What certificate do you have?
For pass box series, all models are CE-certified.
